A small cord can become the weak point of an otherwise useful gravity filter. It has to hold a water-filled reservoir in camp, then secure the empty bag when it is rolled up. Choosing that cord meant looking beyond how neatly a fastener closes: we had to examine what actually holds the load and what touches the bag.
For our 2L gravity filtration system, we compared an elastic cord with spring locks, a hook-and-loop strap, and a ball bungee. We rejected the first two and selected a thicker, 4 mm ball bungee for both hanging and storage. Here is the reasoning, including the concern we still have about rubber aging.
The starting point: two liters of water are a real load
Two liters of water weigh approximately 2 kg. Using F = mg, the water alone produces about 19.6 N of downward force, roughly 20 N, before adding the reservoir and attached components. That is the static starting point. Raising the bag, setting it onto a support, or letting it swing can change the force on the attachment.
The load passes from the reservoir’s top attachment into the cord and then into the supporting branch or other anchor. Every connection along that path matters. A thick cord does not compensate for a fastener that slips, and a reliable fastener does not make a weak branch suitable. The photographs show the hanging arrangement; they are not calibrated proof of a full 2L load or a certified load rating.
Option 1: a spring lock that could not hold the load
The first option used elastic cord with a spring-loaded locking buckle. Pressing the lock makes adjustment convenient; releasing it is supposed to grip the cord and retain the chosen loop length.
In the version we evaluated, the internal spring locking mechanism did not provide enough holding force for the weight of 2L of water. We therefore abandoned that option. The limiting part was the lock: if it cannot retain the cord under load, the loop cannot reliably stay at its selected length.
This is a distinction between cord strength and locking strength. Whether the cord itself can resist tension is only one question. Whether the adjuster can keep it from moving is another. Our decision concerns the particular spring-lock solution we compared; it is not a claim that every spring lock has the same capacity.
Option 2: hook-and-loop brought a different problem
A hook-and-loop strap can secure a rolled bag with an adjustable overlap. Its drawback in this application was the hard hook surface. That surface could scratch the flexible reservoir when it contacted the bag, so we rejected the solution.
A reservoir is folded, rolled, unpacked, and packed again. That makes contact between the fastener and the bag part of ordinary use. We did not want storage convenience to introduce a rough surface that could rub against the reservoir. This was a material-contact concern, rather than a claim that the strap failed a measured tensile test.
The selected design: an elastic loop with a ball end
The ball bungee uses a continuous elastic loop and a ball end. The loop stretches around a support or a rolled bundle and is retained over the ball. Changing the wrap and allowing the cord to stretch accommodates different shapes without relying on the rejected spring adjuster to set the loop length.

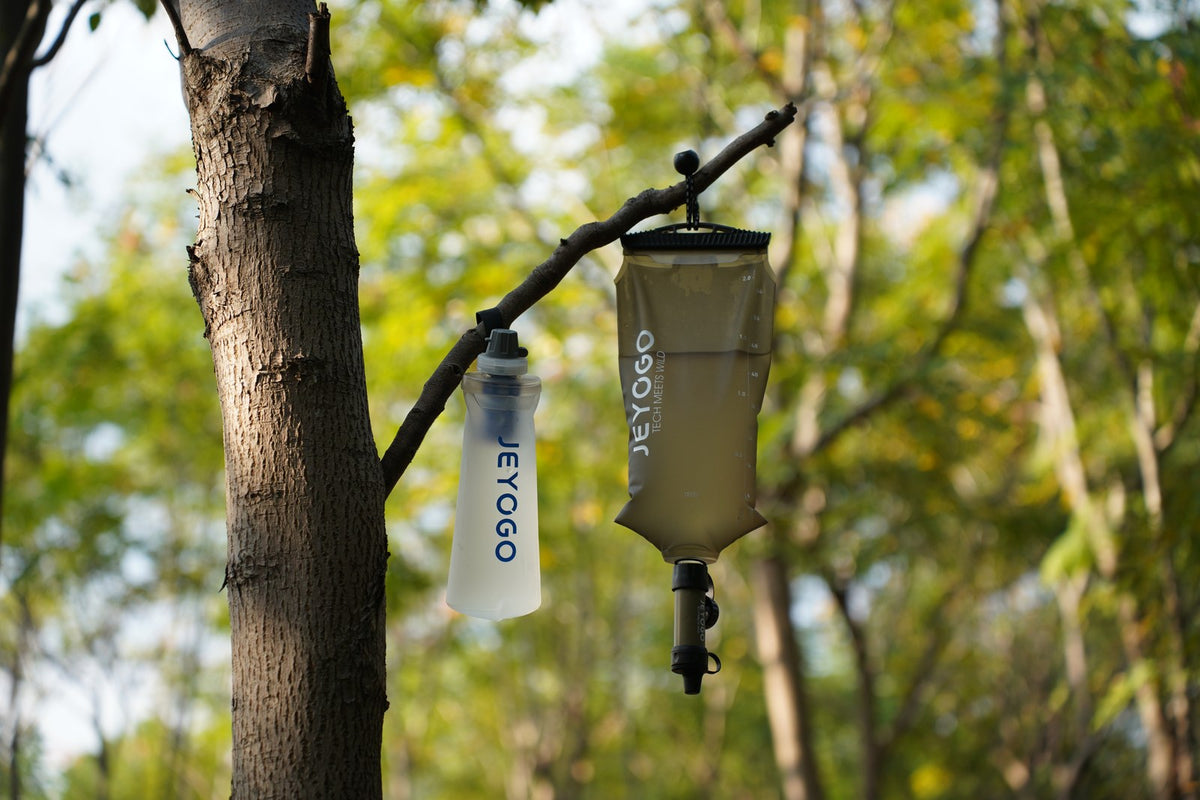

For hanging, the loop connects at the reservoir’s top handle and wraps around the support, as shown in the outdoor photographs. For storage, the empty bag is rolled up and the same cord wraps around it. The ball retains the loop in both arrangements. It is a stretchable cord, rather than a retracting reel or a continuously adjustable buckle strap.
The ball is still a rigid component, so the design does not eliminate every contact or wear point. What it removes is the hard hook face of the rejected strap and the weak spring-lock interface of the rejected cord. Correct engagement of the loop over the ball remains essential.
Why we chose the thicker 4 mm cord
The selected elastic cord has been thickened to a diameter of 4 mm. We wanted a more substantial cord for an accessory that would see repeated stretching, wrapping, and handling. The specification is the diameter of the cord, not a statement of the rubber core’s diameter.
Diameter alone does not establish a safe working load. The rubber formulation, core construction, outer braid, end retention, stretch, and wear condition also affect how an elastic cord behaves. We do not have a measured breaking load, an allowable stretch ratio, or a quantified service life to publish here, so 4 mm should not be read as a substitute for those values.
In our assessment, this thicker cord is also sufficient for a temporary corner attachment on a tent or tarp when an extra tie is needed at camp. That gives the accessory another practical use. It is not a quantified wind-load rating or a replacement specification for a tent’s main guy lines.
One cord for use, then for packing away
The storage photographs show the same ball bungee holding the reservoir in a compact roll. The phone and hand provide visual scale; they do not establish exact packed dimensions. The useful detail is that the hanging accessory becomes the retaining band after the bag is emptied and prepared for storage.
The remaining concern: rubber aging
Rubber aging is the main concern we still have with this choice. A cord that stretches and recovers when new may not behave the same way after prolonged use and exposure. General rubber storage guidance identifies sunlight, ultraviolet radiation, heat, oxygen, and ozone as factors that can accelerate aging. The exact response depends on the rubber compound; we have not established an aging curve or fixed replacement interval for this cord.
As a practical precaution, inspect the cord before hanging a filled bag. Look for a damaged braid, exposed or cracked rubber, poor recovery after stretching, or a loose ball end. Replace a visibly deteriorated cord. When storing it, keep it away from prolonged sunlight and heat and avoid leaving it stretched for long periods.
General material reference: Trelleborg’s rubber hose storage guidance. This informs the general aging discussion; it is not a test or certification of our bungee cord.
The best balance we have found so far
The spring-lock solution fell short on holding force. The hook-and-loop solution introduced a scratching risk at the bag surface. The thicker ball bungee combines hanging and storage in one part and is the best balance we have found for this system so far.
Its remaining limitation is clear: the elastic material can age, and its condition needs attention. For us, the technical value is in choosing the attachment around the actual load and the actual bag, then being explicit about the tradeoff that remains.
